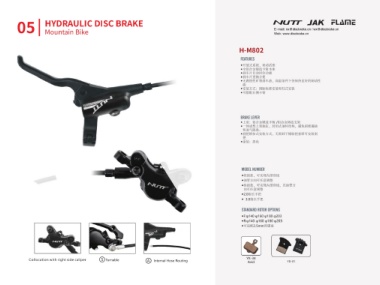

05 HYDRAULIC DISC BRAKE 06 HYDRAULIC DISC BRAKE

Mountain Bike
Road Bike

H-M802 H-R801
FEATURES FEATURES
◆Open system, Dual piston ◆Open system, Dual piston
◆Forged aluminum body ◆Forged aluminum body
◆Non-corrosive mineral brake fluid with ◆Flat mount for road bike only
excellent heat expansion properties ◆Non-corrosive mineral brake fluid with
◆Easy replacement of braking pads design excellent heat expansion properties
compatible with heat-dissipating pads ◆Easy replacement of braking pads design
◆Mount type: International standard mount type & compatible with heat-dissipating pads
post mount type ◆Mount type: Flat mount: 70mm front
◆Collocation with right side caliper and 34mm rear

BRAKE LEVER BRAKE LEVER
◆Forged aluminum lever/Cast aluminum bracket
◆Forged aluminum lever/Cast aluminum bracket
◆A closed oil tank, supplying oil into the pipe, ◆A closed oil tank, supplying oil into the pipe,providesa
compensating effect to support the brake systetem
providesa compensating effect to support
◆Reach adjustment
the brake systetem
◆Brake lever is installed with a lockwithout removing the handlebar grip
◆Reach adjustment
◆Finish: black
◆Brake lever is installed with a lockwithout
removing the handlebar grip
◆Finish: black
MODEL NUMBER MODEL NUMBER
◆Internal Hose Routing
◆Internal Hose Routing
◆Turnable
◆2 finger length lever
◆Internal Hose Routing & Turnable
◆3 finger length lever
◆2.0 finger length lever
◆3.0 finger length lever
STANDARD ROTOR OPTIONS
◆F:φ140 φ160
STANDARD ROTOR OPTIONS ◆R:φ140 φ160
◆F:φ140 φ160 φ180 φ203
◆R:φ140 φ160 φ180 φ203
◆Can be Collocation 2.5 mm disc
190122001
R
YK-37 YD-02
Shimano
XTR
Collocation with right side caliper S Turnable A Internal Hose Routing YK-34 YD-01
Avid
